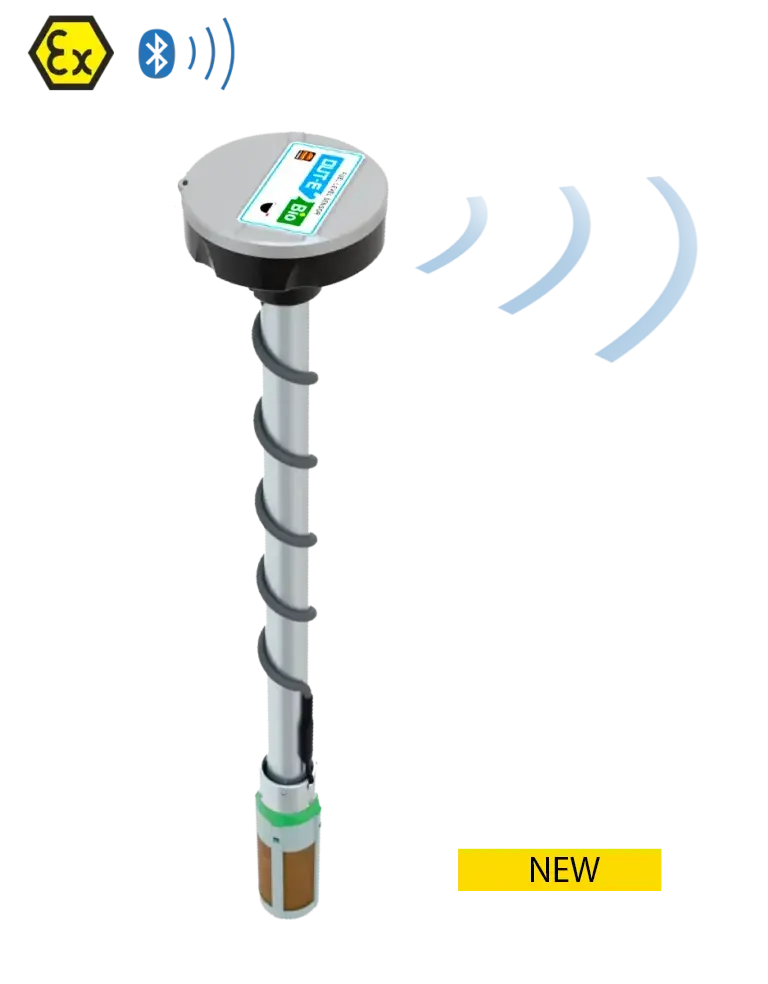

Dut-E 2Bio Fuel level sensor

Fuel level sensor DUT-E 2Bio is designed for precision fuel level measurement in all kinds of vehicle tanks, also in tanks of fixed installations.



DUT-E 2Bio can be used as a part of a fuel monitoring system or to substitute the standard fuel meter of a vehicle.

Different fuel types (summer diesel, winter diesel and especially biodiesel) have different permittivity values. For accurate fuel volume measurement in case of switching between different types of fuel re-calibration of fuel tank is needed.



DUT-E 2Bio fuel level sensor is designed for accurate volume measurement of all types or fuel.

Re-calibration and re-configurations is not needed.  DUT-E as a part of telematics system is used:

  • to obtain reliable information about current fuel volume in vehicle tank;
  • to define the vehicle fueling volume;
  • to detect fuel theft from the tank;
  • to carry out the remote tank monitoring;
  • to determine fuel consumption.

Features

  • configuratable thermal correction for automatic compensation based on ambient temperature;
  • digital self-diagnostics to control data reliability;
  • conformity to compulsory automobile standards of the European Union, Russia, and Belarus;
  • no recalibration required for up to 30% length reduction of the sensor (DUT-E А5, DUT-E А10, DUT-E I);
  • length increase with additional sections of DUT-E – up to 6000 mm;
  • ergonomic bayonet-type fastening to save mounting time;
  • sealing openings to prevent tampering;
  • all the necessary mounting items and cords in delivery set;
  • filter for secure protection from water and mud;
  • convenient ready output signal showing fuel level in the tank in mm, fuel volume in littres, percentage of full tank capacity

Ordinary capacitive fuel level sensors.

Fuel level sensor sends overestimated fuel volume when switching from regular diesel fuel to biofuel.

DUT-E 2Bio fuel level sensor

Fuel level sensor sends real fuel volume when switching from regular diesel fuel to biofuel.

Ordinary capacitive fuel level sensors

DUT-E 2Bio fuel level sensor


Models:


DUT 2Bio AF: analog/frequency output, 1.0 – 9.0V/ 500-1500 Hz;
DUT 2Bio 485: RS-485 digital interface;
DUT 2Bio 232: RS-232 digital interface;
DUT 2Bio CAN: CAN (J1939) interface.


Technical specifications:


Operation principle ....................................................... Capacitive
Measurement inaccuracy.........................................................1%
Supply voltage, V ............................... 10 .. 50, protection up to 100
Operation temperature, °С ............................................. –40 .. +85
Current consumption (DC 24/12V), mA ............................. ≤ 25/50
Probe length, mm ......................................................... 700, 1000



Recommendations on connecting and set-up of fuel level sensors DUT-E 2Bio  and GPS vehicle trackers can be found on this page.
