S6 service adapters used for:

  • configuration,
  • viewing Counters,
  • diagnostics and data transfer

for fuel level sensors DUT-E, flowmeters DFM and other Technoton products by wired and wireless way.

Features:

  • Adapter is power supplied form onboard power network – additional power adpapers are not needed.
  • Universal for connecting any S6-compatible device.
  • All units connected via S6 interface can be configured from any point of network – no need to reconnect to each separately.
  • Possibility of “hot” connection via S6 technology – no need to disconnect onboard power network.

S6 BT adapter

S6 BT adapter

S6 BT service adapter is used for wireless device connection to Android-based smartphone or tablet over Bluetooth.

Using S6 BT it is possible to configure:

  • One-chamber and differential DFM fuel flow meters, produced after 01/01/2016.
  • DFM Marine fuel flow meters with pulse output.
  • DUT-E CAN fuel level sensors.
  • DUT-E GSM fuel level sensors with in-built GPS & GSM modules.
  • DUT-E 2Bio fuel level sensors for biodiesel.

S6 BT adapter. Scheme of configuring devices, connected through S6 Technology

S6 BT adapter. Scheme of configuring devices, connected through S6 Technology

S6 SK adapter

S6 SK adapter

S6 SK service adapter is used for connecting telematics equipment to PC

Using S6 SK it is possible to configure:

  • One-chamber and differential DFM fuel flow meters, produced after 01/01/2016.
  • DFM Marine fuel flow meters with signal cable.
  • DUT-E CAN fuel level sensors.
  • DUT-E GSM fuel level sensors with in-built GPS & GSM modules.
  • DUT-E 2Bio fuel level sensors for biodiesel.
  • MasterCAN DAC j1939 i/o modules.
  • CANUp 27 online telematics gateway.

Connecting Unit to PC

Fuel flow meter DFM configuration scheme* It is allowed to leave the power supply from on-board network turned on while configuring Units connected via S6 Telematics interface

Fuel level sensor DUT-E configuration scheme

* It is allowed to leave the power supply from on-board network turned on while configuring Units connected via S6 Telematics interface

Connecting CANUp to PC

Digital to analog converter MasterCAN DAC15 configuration scheme

* It is allowed to leave the power supply from on-board network turned on while configuring Units connected via S6 Telematics interface.



* It is allowed to leave the power supply from on-board network turned on while configuring Units connected via S6 Telematics interface.

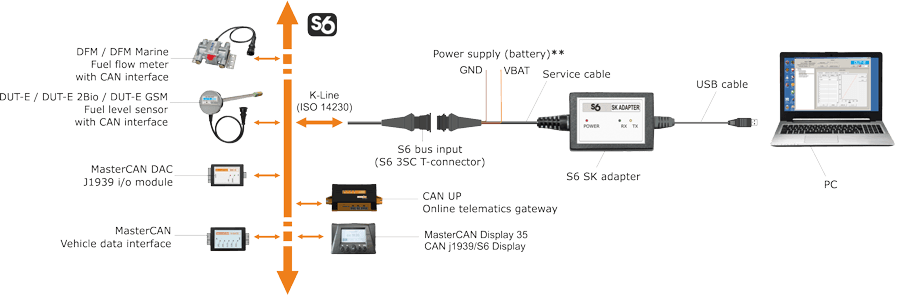

Telematics interface Units configuration scheme

DFM/DFM Marine

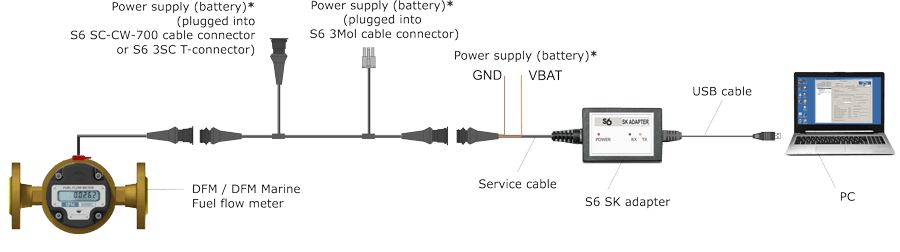

Fuel flow meter DFM configuration scheme* It is allowed to leave the power supply from on-board network turned on while configuring Units connected via S6 Telematics interface

DUT-E CAN/DUT-E GSM/DUT-E 2Bio

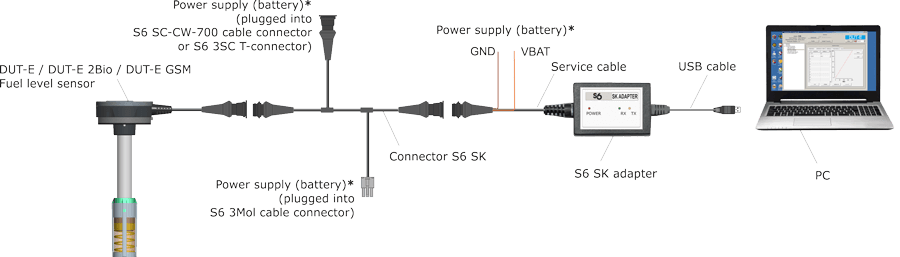

Fuel level sensor DUT-E configuration scheme

* It is allowed to leave the power supply from on-board network turned on while configuring Units connected via S6 Telematics interface

CAN UP 27

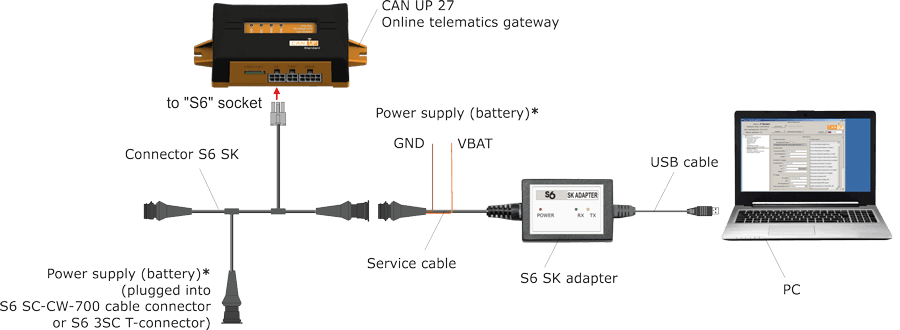

Connecting CANUp to PC

MasterCAN DAC15

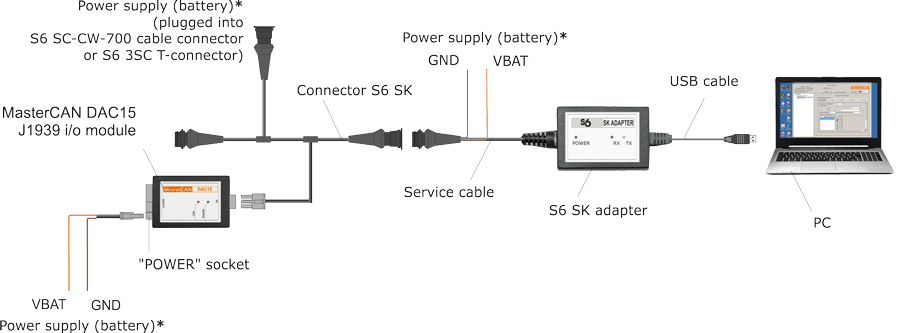

Digital to analog converter MasterCAN DAC15 configuration scheme

* It is allowed to leave the power supply from on-board network turned on while configuring Units connected via S6 Telematics interface.

MasterCAN DAC2113

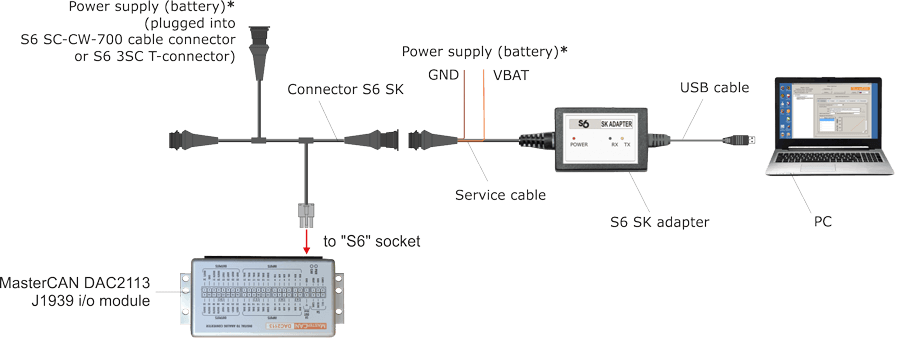

* It is allowed to leave the power supply from on-board network turned on while configuring Units connected via S6 Telematics interface.

S6 Telematics interface Units

Telematics interface Units configuration scheme
