Additional Section DUT-E

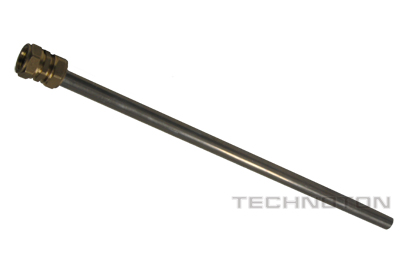

Additional section DUТ-E is designed to increase the length of fuel level sensors measuring part including shortened ones.

We offer the following models: KDC 250, KDC 500, KDC 1000.

  • Allows lengthen of fuel level sensors up to 6000 mm;
  • Reliable joint guarantees the quality signal;
  • Reduces the cost of delivery.
Additional section for DUT-E fuel level sensor

  DUТ-E LENGTHEN UP TO 6000 mm

 DUТ-E LENGTHEN UP TO 6000 mm






DUТ-E A5, DUТ-E A10 and DUТ-E I Length Increasing

It is possible to increase the length of fuel level sensors which have been shortened earlier – to a length no more than nominal.

Example 1: DUТ-E A5 L=1000 mm has been shortened to the length of 800 mm, and it has to be installed into vehicle tank of 900 mm depth. We have to increase the length of DUТ-E A5 with additional section KDC 250 to the length of 1050 mm (800+250=1050 mm) and cut 150 mm.

Example 2: DUТ-E A5 L=700 mm has been shortened by mistake to the length of 200 mm. Now it is necessary to install the sensor into a tank of 600 mm depth. We have to increase the length of DUТ-E A5 with additional section KDC 500 to the length of 700 mm (200+500=700 mm) and cut 100 mm.

Example 3: DUТ-E A5 L=700 mm has been shortened to the length of 600 mm. It is necessary to install the sensor into a tank of 800 mm depth. We have to increase DUТ-E A5 with additional section KDC 250 up to the length of 850 mm (600+250 = 850 mm) and cut 50 mm. But it would not work because the total length is more than nominal length (700 mm).


DUТ-E 232, DUТ-E 485, DUT-E AF, DUT-E CAN Length Increasing

It is possible to increse the length both shortened ones and new sensors. It is possible to increase the length of these sensors to any length including more than nominal. The maximum length of DUТ-E with additional sections should not exceed 6000 mm.

It is necessary to calibrate DUТ-E using Service kit DUТ-E after length increasing or shortening but before the tank calibration.

Example 1: DUТ-E 232 L=1000 mm has been shortened till the length of 800 mm. It is necessary to install it into a tank of 900 mm depth. We have to increase the length of DUТ-E 232 with additional section KDC 250 to the length of 1050 mm (800+250=1050 mm) and cut 150 mm.

Example 2: It is necessary to equip a tank of 1900 mm depth. DUТ-E 232 L=1000 mm to be extended by additional section KDC 1000, then cut 100 mm.

Example 3:
It is necessary to equip a tank of 4500 mm depth. DUТ-E 232 L=1400 mm has to be extended by 3 sections KDC 1000 and 1 section KDC 250, then cut 150 mm.


Recommended Applications




Final length, mm Initial DUТ-E length, mm Additional sections (pcs X length)
up to 1400 700, 1000, 1400 not required
1100-1500 1000 1X500
1500-1900 1400 1X500
1100-2000 1000 1X1000
1500-2400 1400 1X1000
2100-3000 1000 2X1000
2500-3400 1400 2X1000
3100-4000 1000 3X1000
3500-4400 1400 3X1000
4100-5000 1000 4X1000
4500-5400 1400 4X1000



Note: DUТ-E L=1400 mm is inconvenient for the air transportation.




DUТ-E Length Increase Using An Additional Section

Step-by-step instruction. Increasing DUT-E fuel level sensor length

Warranty




Warranty period is 5 years from the date of manufacturing.
